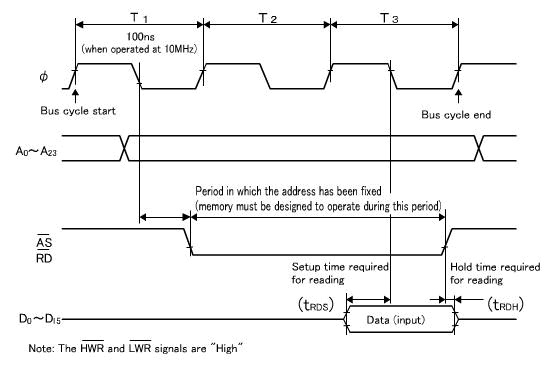

Figure 13.1 shows the read timing from an external memory. This is an example for 24-bit address and 16-bit data buses. Reading is completed in a 3-system clock time (3-state access).
To read data or instructions from the memory, the setup time and hold time of the read data must be satisfied.
 |
| Figure 13.1: Read Timing from External Memory |
